Victor Inverter Solar Controller Hybrid DC 48V to AC 230V 6200W - ECO-6.2KW-PLUS - White

Change the Current as Needed

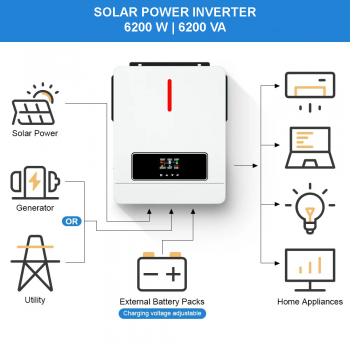

To generate electricity from solar panels, batteries, or generators, you need to convert it using a solar inverter. The inverter converts the 48 V DC current from these power sources into 230 V AC in the form of a pure sine wave, as required by household electrical appliances.

High Power, High Efficiency

This solar inverter's large power capacity also makes it suitable for home use. The inverter can handle a total power of 6200 VA with an output of up to 6200 W. It's perfect for powering air conditioners, refrigerators, washing machines, and other electrical appliances.

Solar Panel Power Control

In addition to being an inverter, this device is also equipped with MPPT technology, which functions as a solar charge controller. This technology allows the inverter to extract maximum power from the solar panels and store excess power back into the battery. The solar panels also accept a wide input voltage range, ranging from DC 60-450 V.

Supports Various Battery Types

This solar inverter is flexibly designed to support various battery types, including VRLA AGM, GEL, wet cells, and modern lithium batteries. You can also manually set parameters for custom batteries. This flexibility helps ensure your solar power system runs optimally and efficiently.

Connect to WiFi Module

Enjoy easy control of your solar power system with the RS-232 communication port. You can also connect the module's Wi-Fi to monitor performance, set parameters, and diagnose the inverter directly from the module's supported app. The GOOTU 100G module is available.

Equipped with Electrical Protection

As a device that supports home electricity needs, Victor's solar inverter is equipped with various electrical protections. The device is protected against reverse polarity, overheating, and overcharging, ensuring safe power transmission while maintaining the health of connected devices.

Voltage

Solar Panel Input: - Nominal Voltage: DC 240 V - Maximum Voltage: DC 500 V - Input Voltage Range: DC 60-450 V - Maximum Load: DC 240-450 V - Maximum Charging Current: 120 A - Maximum Current: 22 A - Maximum Input Power: 6500 W AC Output: - Nominal Voltage: AC 220 V / 230 V / 240 V - Output Voltage Range: AC 195-253 V - Output Frequency Range: 49-51 ±1 Hz - Nominal Current: 27.0 A - Nominal Frequency: 50/60 Hz - Energy Conversion (DC/AC): 97% AC Input: - Nominal Voltage: AC 230 V - Maximum Input Current: 36.4 A - Nominal Frequency: 50/60 Hz - Surge Power: 12400 VA - Maximum Charging Current: 100 A Battery: - Battery Voltage: DC 48 V - Battery Current: 125 A (Maximum) Two Load Output Power - Maximum Main Load: 6200 W - Secondary Load Range: 1240 - 4340 W - Main Load Breaker Voltage: 52 V DC - Main Load Inverter Voltage: 54 V DC

Power

Full Load: 6200 W Primary Power Load: 6200 W Secondary Power Load Range: 1240 W - 4340 W Electrical Capacity: 6200 VA Solar Panel Input Power: 6500 W (Maximum)

Material

Aluminum, ABS

Dimensions

Inverter Dimensions: 358 x 442 x 116 mm Cable Size: 12 AWG (4 mm²)

Battery Type

Types: VRLA AGM, GEL, Wet Batteries, to Modern Lithium Batteries

Port

- AC Input Port - Battery Input Port - Solar Panel Input Port - Main Output Port - Secondary Output Port - RS-232 Communication/WiFi Port
