Victor Inverter Solar Controller Hybrid DC 48V to AC 230V 10200W - MAX-10.2KW - White

Change the Current as Needed

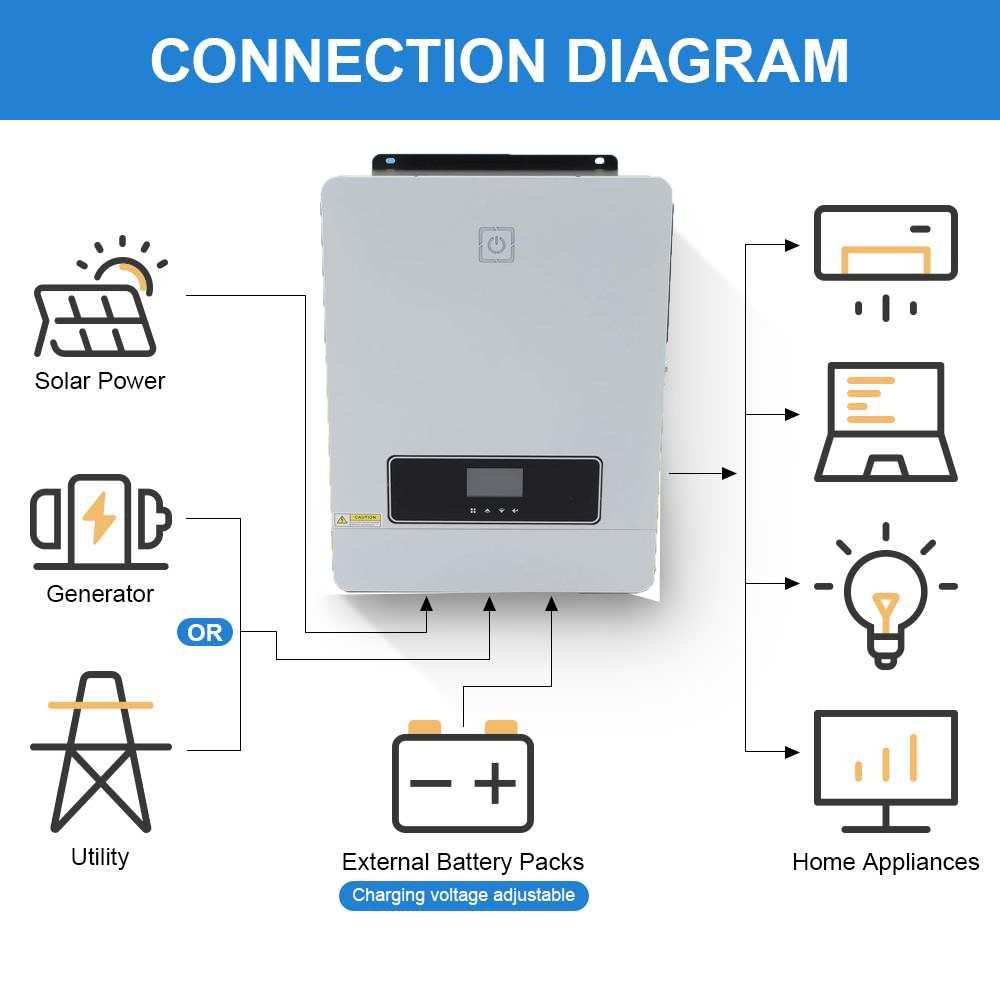

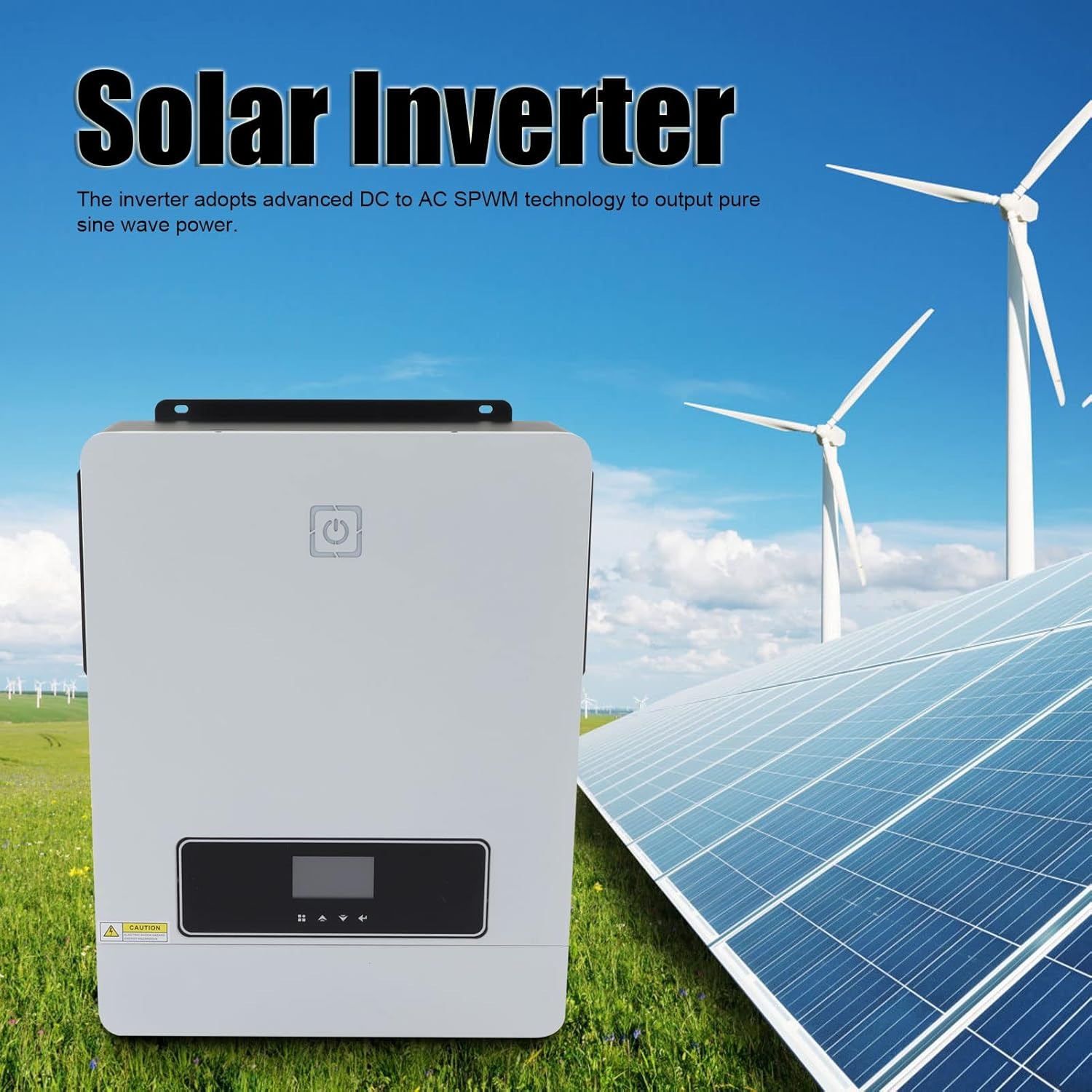

To generate electricity from solar panels, batteries, or generators, you need to convert it using a solar inverter. The inverter converts the 48 V DC current from these power sources into 230 V AC in the form of a pure sine wave, as required by household electrical appliances.

High Power, High Efficiency

This solar inverter's large power capacity also makes it suitable for home use. The inverter can handle a total power of 10,200 VA with an output of up to 10,200 W. It's perfect for powering air conditioners, refrigerators, washing machines, and other electrical appliances.

Solar Panel Power Control

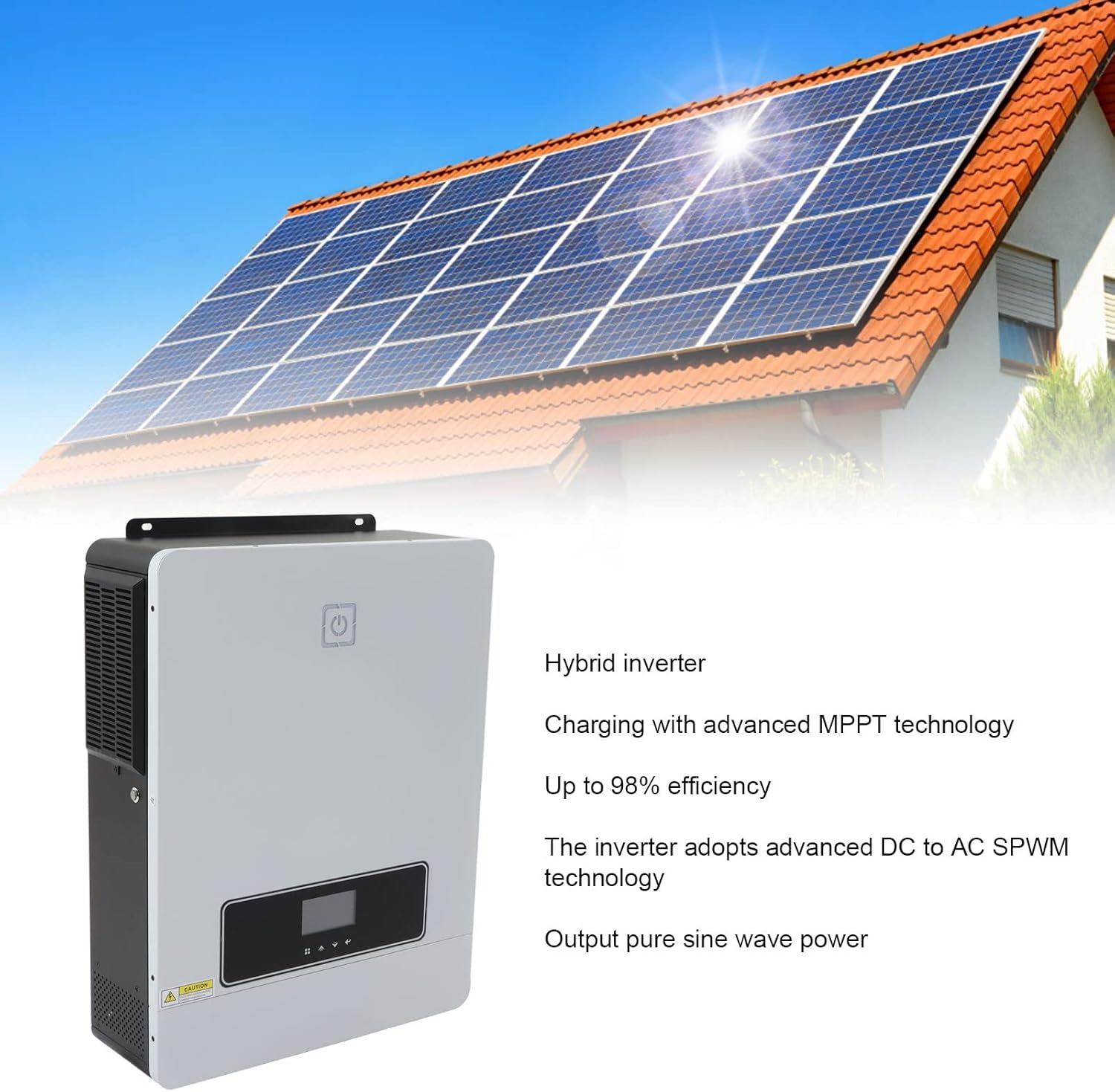

In addition to being an inverter, this device also features dual MPPT technology, which functions as a solar charge controller. This technology allows the inverter to draw maximum power from two solar panel connections and store excess power back into the battery. The solar panel's input voltage range is also wide, ranging from DC 90-450 V.

Supports Various Battery Types

This solar inverter is flexibly designed to support various battery types, including VRLA AGM, GEL, wet cells, and modern lithium batteries. You can also manually set parameters for custom batteries. This flexibility helps ensure your solar power system runs optimally and efficiently.

Connect to WiFi Module

Enjoy easy control of your solar power system with the RS-232 communication port. You can also connect the module's Wi-Fi to monitor performance, set parameters, and diagnose the inverter directly from the module's supported app. More specific functions, such as turning the device on or off via smartphone, are not available. The GOOTU 100G module is available.

Equipped with Electrical Protection

As a device that supports home electricity needs, Victor's solar inverter is equipped with various electrical protections. The device is protected against reverse polarity, overheating, and overcharging, ensuring safe power transmission while maintaining the health of connected devices.

Material

Solar Inverter Cover: ABS Plastic Solar Inverter Surface: Aluminum

Dimensions

53 x 39 x 13.5 cm

Etc

Output Voltage Waveform: Pure Sine Wave Output Voltage Regulation: 230 VAC ± 5%

Port

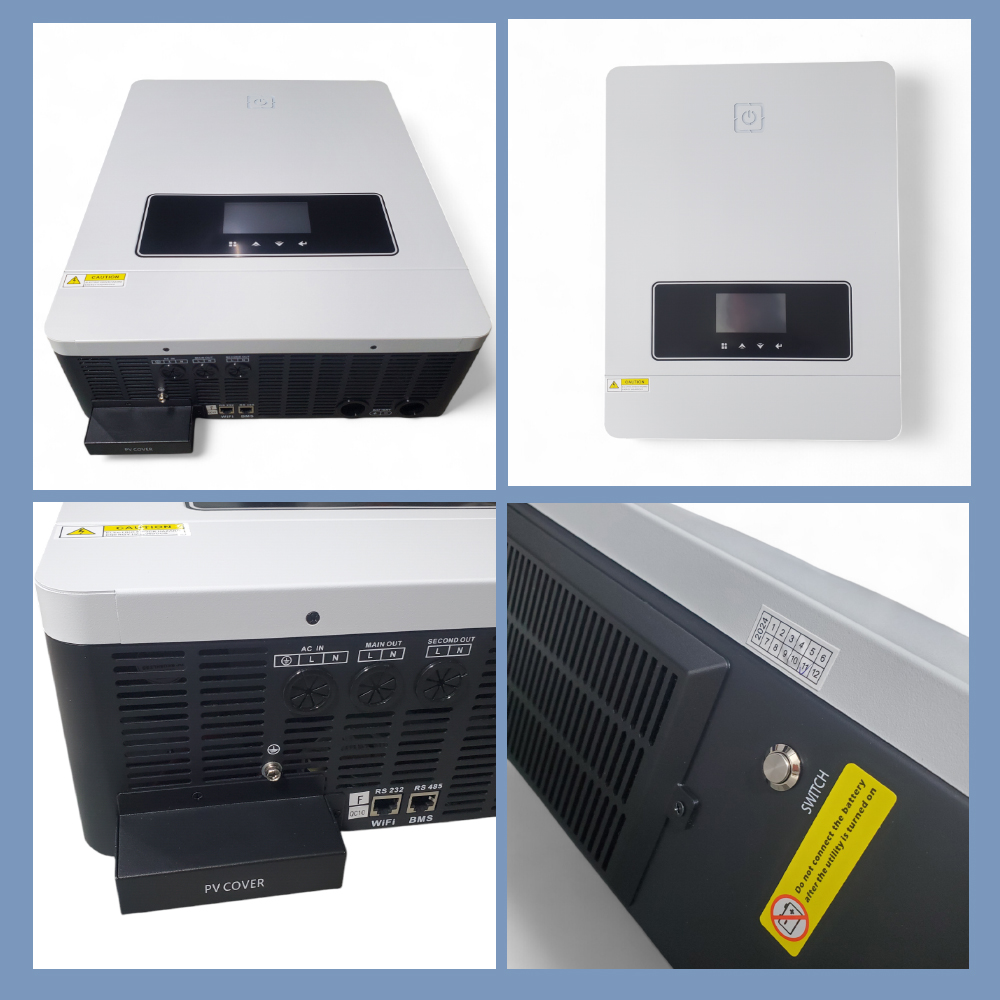

- AC Input Port - Main Output Port - Second Output Port - Solar Panel Input Port 1 - Solar Panel Input Port 2 - Battery Input Port - RS-232 Communication / WiFi Port - RS-485 Communication / Battery Port

Voltage and Power

Solar Panel Input: - Nominal Voltage: DC 360 V - Maximum Voltage: DC 500 V - Input Voltage Range: DC 90-450 V - Maximum Load: DC 360-450 V - Maximum Charging Current: 160 A - Maximum Current: 18 A/2 Channels - Solar Panel Input Power: 5400 W + 5400 W (Maximum) AC Output: - Nominal Voltage: AC 220 V / 230 V / 240 V - Output Voltage Range: AC 195-253 V - Output Frequency Range: 50 ± 1 Hz - Nominal Current: 44.3 A - Nominal Frequency: 50/60 Hz - Energy Conversion (DC/AC): 98% AC Input: - Nominal Voltage: AC 230 V - Maximum Input Current: 60 A - Nominal Frequency: 50/60 Hz - Surge Power: 20400 VA - Maximum Charging Current: 140 A Battery: - Battery Voltage: DC 48 V - Battery Current: 212.5 A (Maximum) Two Power Load Output - Maximum Main Load: 10200 W - Secondary Load Range: 2040 W - 7140 W - Main Load Breaker Voltage: 52 V DC - Main Load Inverter Voltage: 54 V DC
